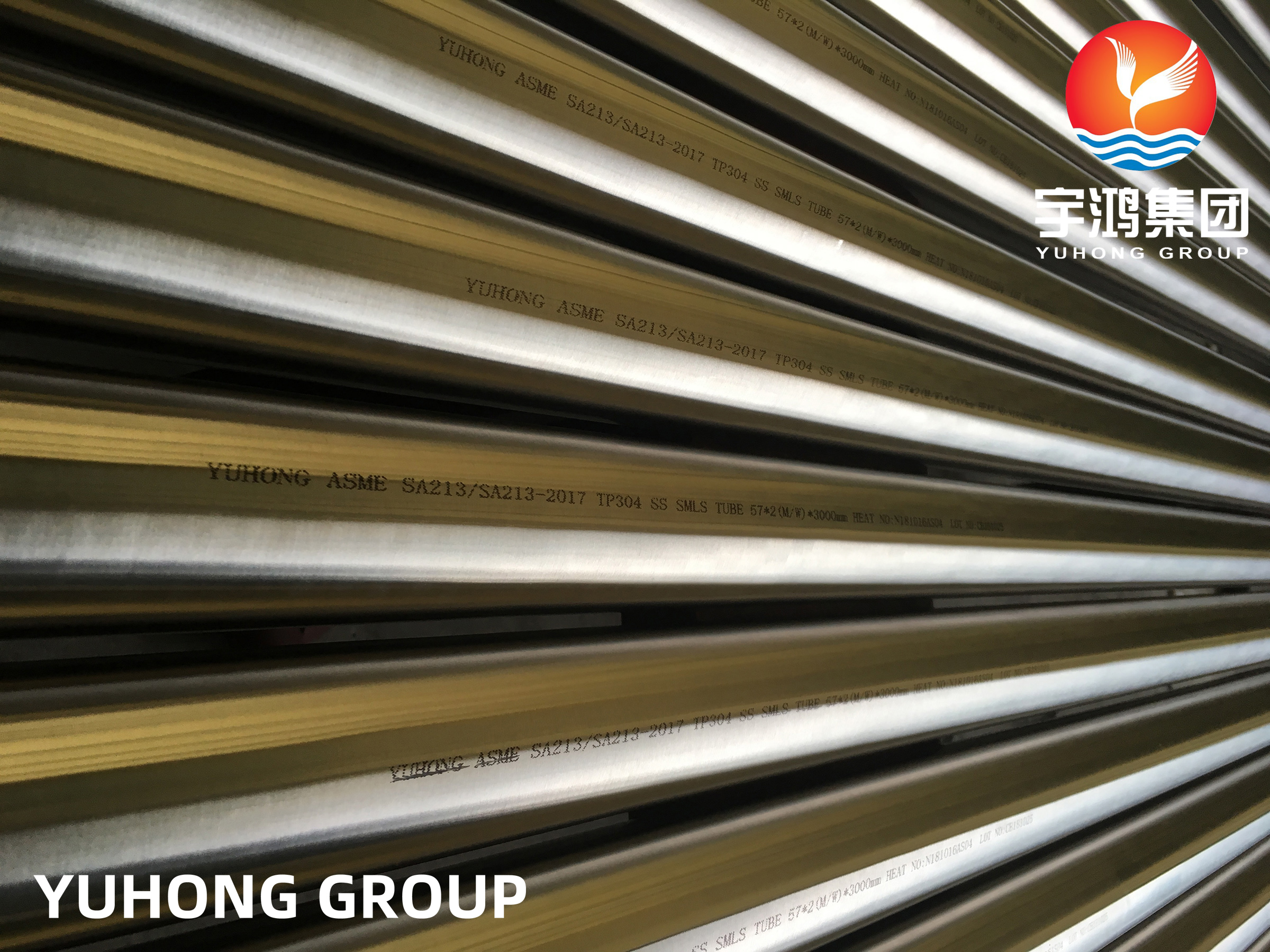

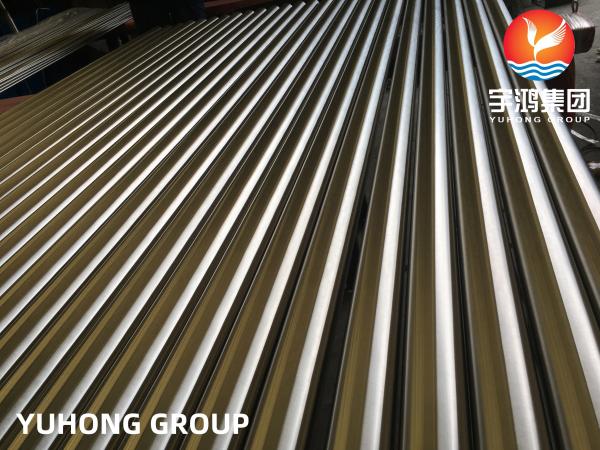

ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER

Name: ASTM A213ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER
Brand: YUHONG
Price: 1 USD

Quality ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER wholesale

Brand Name : YUHONG

Model Number : ASTM A213/ASME SA213 TP304 BA TUBE

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : CHINA

MOQ : 100KGS

Price : negotiable

Supply Ability : 1500 tons per month

Delivery Time : according to quantity

Packaging Details : PLY-WOODEN CASE PACKING/IRON CASE PACKING

Payment Terms : T/T, L/C

Standard : ASTM A213/ASME SA213

Material : TP304/304L/304H

SIZE : 1.8'' to 6''

Length : 6M or specified length as required

Packing : ply wooden case

Finish : Bright Annealing

Contact Now

ASTM A213/ASME SA213 TP304 BRIGHT ANNEALED STAINLESS STEEL TUBE FOR HEAT EXCHANGER

Overview:

Most stainless steel tubing is heat treated by the bright annealing process, in which the tubing is annealed in a protective medium to prevent discoloration of the bright surface. Since austenitic stainless steel is the most often used tubing material, the heat treatment process is bright annealing of austenitic stainless steel in essence.

The stainless steel tubing is generally produced by a cold-drawing process. A subsequent annealing process is required to eliminate residue stress and obtain improved softness and ductility. Meanwhile, since chromium carbides formed at the grain boundaries during high-temperature exposure may result in susceptibility of the austenitic stainless steel to intergranular corrosion, they must be dissolved during annealing before cooling begins. If the annealing is conducted in a protective atmosphere such as pure hydrogen or dissociated ammonia, the formation of an oxide layer on the tubing exterior and interior surfaces can be completely avoided. The stainless steel tubing maintains its original metal luster as well as excellent surface finish. There is no need for a subsequent pickling process.

Specification:

Specification	ASTM A213 & Its equivalent ASME, DIN & EN Standard.
Grades	304, 304H, 304L, 304LN.
Type	Superheater, Seamless Ferritic and Austenitic Boiler and Heat-Exchanger Tubes
Outer Diameter Size	1/4” OD, NB to 3” OD, NB sizes
Wall Thickness	1mm to 12mm, SCH 5/5S, 40/40S, 10/10S, 20/20S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Length	Up to 6 meters, custom cut lengths
Ends	No.4 finish, No.1 Pickled Finish, BA Finish, Electropolished Seamless Tubes
Other Testing	Product Analysis, Radiographic Examination, Transverse Tension Test, Flattening Test, Etching Test, Stabilizing Heat Treatment, Intergranular Corrosion Test, Grain Size Test, NACE 0175, Dual Grade, Weld Decay Test, Magnetic Particle Detection, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
Dimension	All Pipe & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packaging	Loose / Bundle / Plastic Cloth Wraps / Wooden Pallet / Wooden Box / Plastic End Caps / Beveled Protector

Chemical Composition:

Grade	UNS	C	Mn	P	S	Si	Cr	Ni
304	S30400	0.08 max	2.00 max	0.045 max	0.03 max	1.00 max	18.0-20.0	8.0-11.0
304L	S30403	0.035 max	2.00 max	0.045 max	0.03 max	1.00 max	18.0-20.0	8.0-12.0
304H	S30409	0.04-0.10	2.00 max	0.045 max	0.03 max	1.00 max	18.0-20.0	8.0-11.0

Mechanical Properties:

Grade	Tensile Strength, min, ksi (MPa)	Yield Strength, min, ksi (MPa)	Elongation in 2 in. or 50mm, min (%)	Hardness		Solutioning Temperature, min, °F(°C)
Grade	Tensile Strength, min, ksi (MPa)	Yield Strength, min, ksi (MPa)	Elongation in 2 in. or 50mm, min (%)	Rockwell	Brinell/Vickers	Solutioning Temperature, min, °F(°C)
304	75(515)	30(205)	35	90HRB	192HBW/200HV	1900(1040)
304L	70(485)	25(170)	35	90HRB	192HBW/200HV	1900(1040)
304H	75(515)	30(205)	35	90HRB	192HBW/200HV	1900(1040)

Equivalent Grades:

Standard	WERKSTOFF NR.	Unified Numbering System	European Standards	AFNOR	British Standards	GOST	Japanese Standards
304	1.4301	S30400	X5CrNi18-10	Z7CN18‐09	304S31	08Х18Н10	SUS 304
304L	1.4306 / 1.4307	S30403	X2CrNi18-9 / X2CrNi19-11	Z3CN18‐10	304S11	03Х18Н11	SUS 304L
304H	1.4948	S30409	X6CrNi18-10	Z6CN18-09	304S51	08KH18N10	SUS 304H

Applications:

1.Oil & Gas Equipments

2.Offshore Technology

3.Seawater Desalination Plants

4.Chemical Industry

5.Bridges

6.Storage Tanks

7.Medical Industry

8.Civil Engineering

9.Pressure Vessels, Reactor Tanks, and Heat Exchangers

10.Rotors, Impellers and Shafts

11.Power Plants

12.Petrochemical

13.Shipbuilding Industry
