Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11

Name: Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows Couplings ASME B1611
Brand: YUHONG
Price: 1 USD

Quality Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11 wholesale

Brand Name : YUHONG

Model Number : F316L

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to Client's Requirements

Delivery Time : 5 - 90 Work Days

Packaging Details : Ply-wooden Case / Pallet

Standard : ASTM A182, ASME SA182

Material Grade : F316L, UNS S31603

Forming Type : Elbow,Nipple,Reducer,Eelbow,Tee,Coupling,Etc.

Technics : Forged

Size : 1/2''-48''(DN15-DN1200)

Class : 1500LBS, 3000LBS, 6000LBS

Type : Seamless, Welded

Application : Construction,gas and oil pipes,air,Steam,Petroleum gas water

Contact Now

Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11

ASTM A182 F316L, UNS S31603 Forged Socket Weld Fitting is the low carbon version of 316 and is immune from sensitisation. It is widely used in heavy gauge welded components (over about 6mm). ASTM A182 F316L Stainless Steel Pipe Fittings contain some effective features. They contain the most effective features are high oxidation resistant and excellent pitting resistance. They’re much better corrosion resistance as compared to 304 type stainless steel. And they have strong resistance to the most chemical feature.

Specifications:

Specification	ASTM A182, ASME SA182
Dimensions	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/4" to 48"
Type	Socketweld Fittings, Threaded / Screwed Fittings
Rating Pressure	2000LBS, 3000LBS, 6000LBS, 9000LBS

Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11

Equivalent Grades:

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Chemical Composition:

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
F316L	0.035 max	2 max	1 max	0.045 max	0.03 max	16 - 18	2 - 3	10 - 14	68.89 min

Mechanical Properties:

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Applications:

Plumbing

Construction

Petroleum Industry

Fabrication Industry

Power Plants

Oil & Gas Industry

Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11

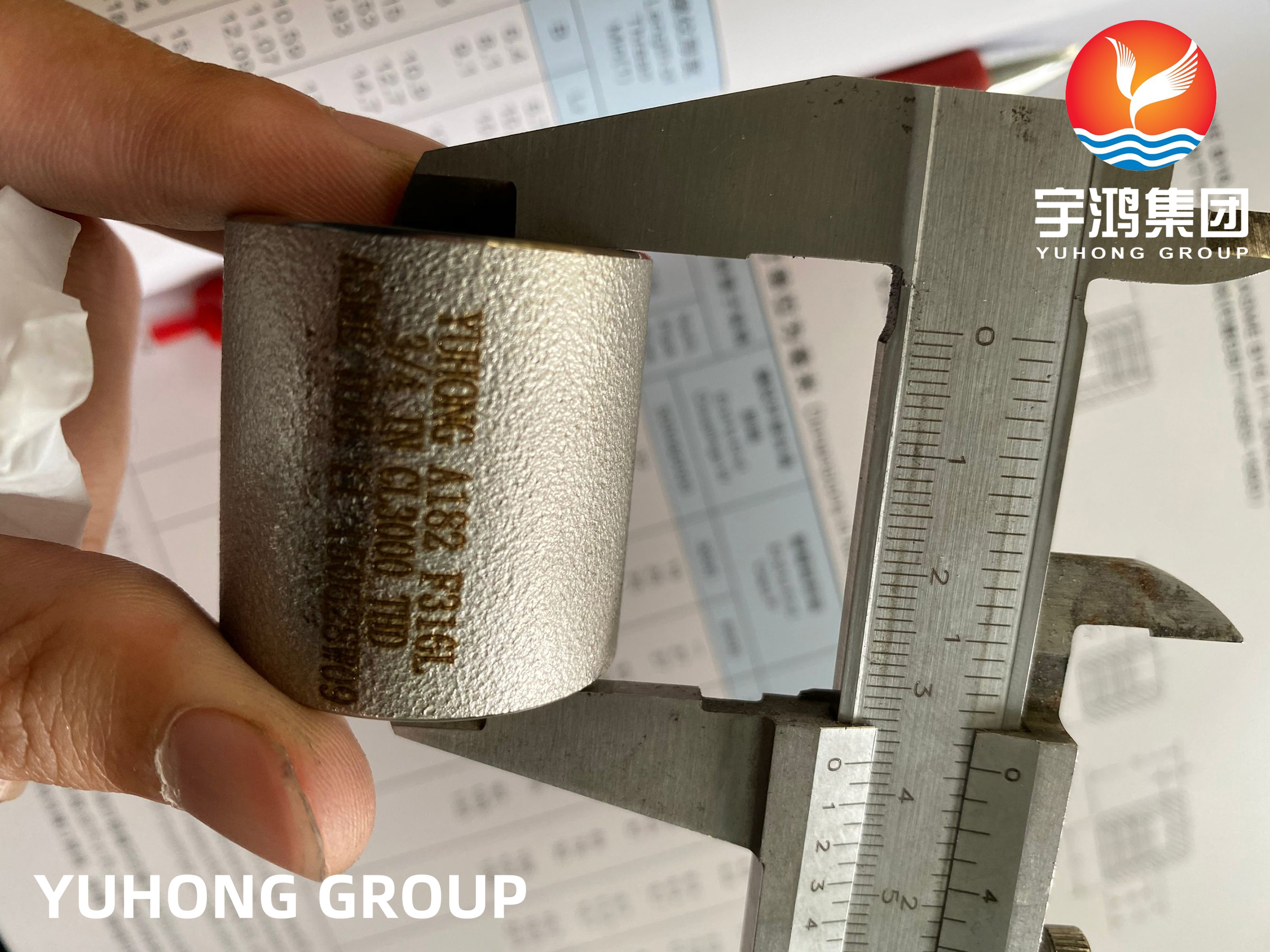

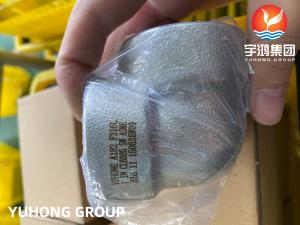

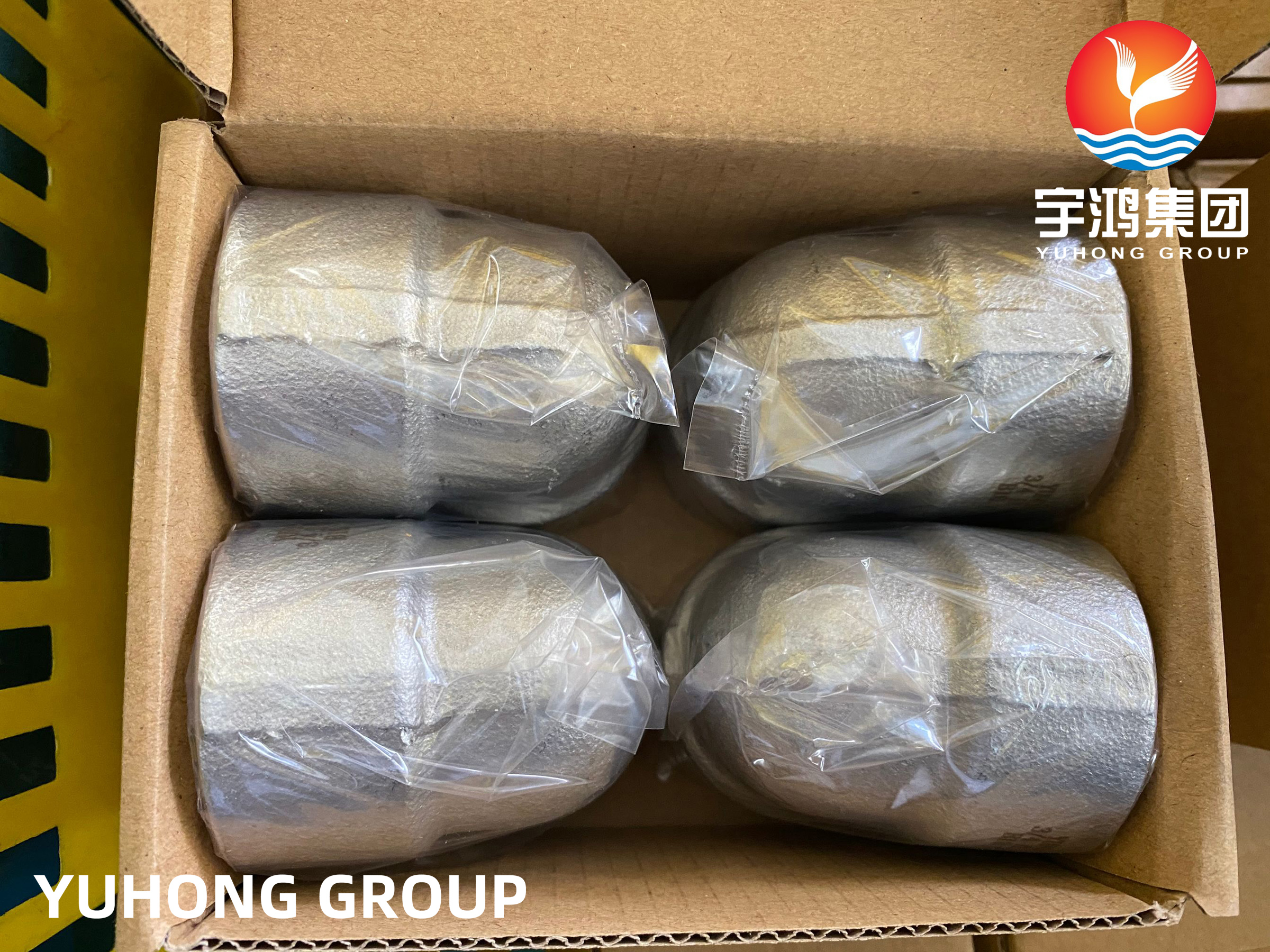

Forged Fittings ASTM A182 F316L Stainless Steel Threaded Elbows, Couplings, ASME B16.11 Images
