ASTM A182 F316L Stainless Steel RF Blind Flanges Bridas
YUHONG supplies ASTM A182 F316L Blind Apectacle Stainless Steel Flanges.
The low carbon version of F316L pipe flange has immunity against sensitisation, otherwise known as grain boundary carbide precipitation. And it also gives this grades excellent toughness properties ,that can be witnessed at to cryogenic temperatures.
As compared to other chromium-nickel austenitic stainless steels, ASTM A182 F316L stainless steel offers a much higher creep strength, stress to rupture strength and tensile strength, even at elevated temperatures. Whats' more, ASTM A182 F316L is usually regarded as the standard “Marine Grade Stainless Steel”, the ASTM A182 F316L is not resistant to warm sea water.
Specification Of ASTM A182 F316L
| Type | WN / Threaded / SW / SO / BLIND / LAP JOINT,etc |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ to 48″NB |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Flange Delivery Condition | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T, Machined |
| Flange Dimension Standard | Standard - ANSI - ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, and ANSI B16.48 |
| Other Testing | NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc. |
| Flange Value Added Service | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
| Coating Flanges Face | Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint |
| Flange Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Chemical Composition Max% Of ASTM A182 F316L
| C | Mo | P | Mn | S | Si | Ni | Cr |
| 0.08 | 2-3 | 0.045 | 2 | 0.03 | 1 | 11-14 | 16-18 |
Physical Properties Of ASTM A182 F316L
| Density | 8.0 g / m³ |
| Melting Point | 1399 ℃ |
Mechanical Properties Of ASTM A182 F316L
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 75,000 , MPa – 515 | Psi – 30,000 , MPa – 205 | 35 % |
Applications
Fabrication Industry
Pickling Equipment
Waste Incineration Industry
Pollution-Control Equipment
Natural Gas Industry
Chemical Industry - Processing
Oil And Gas Well Piping
Nuclear Fuel Reprocessing
Acid Production
Water Pipeline Industry
Product Tags:
|
|

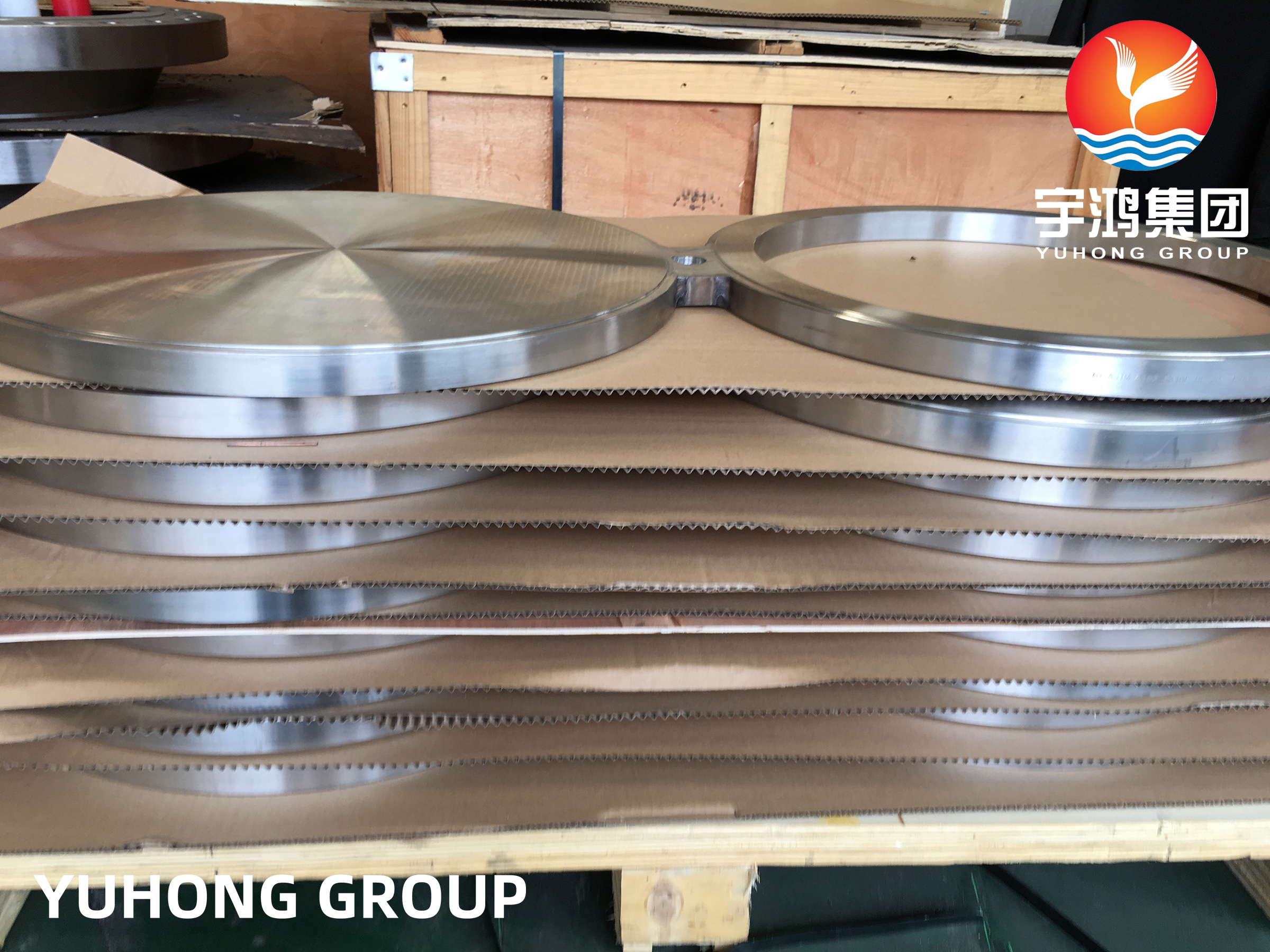

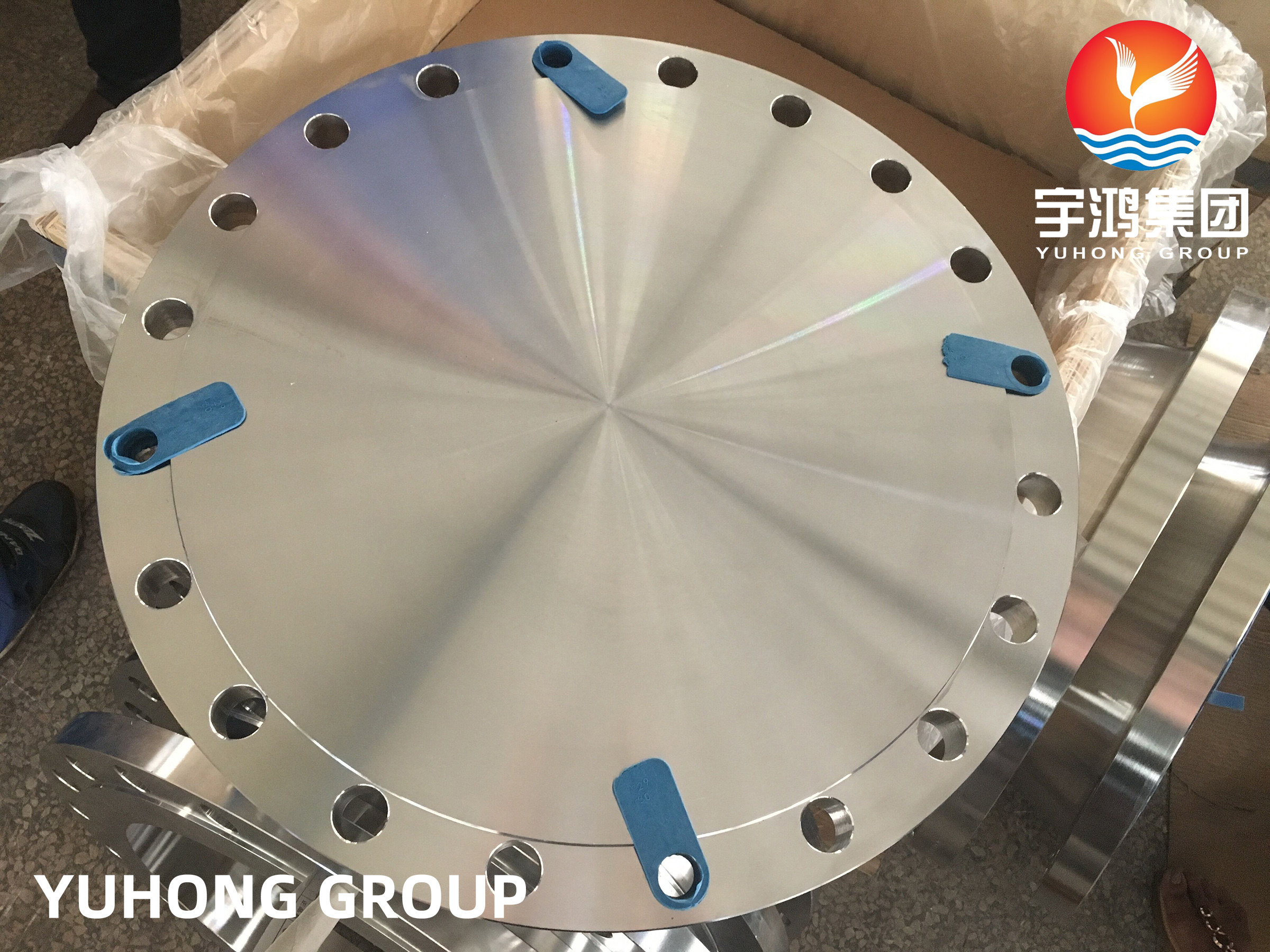

ASTM A182 F316L Stainless Steel RF Blind Flanges Bridas Images
|
