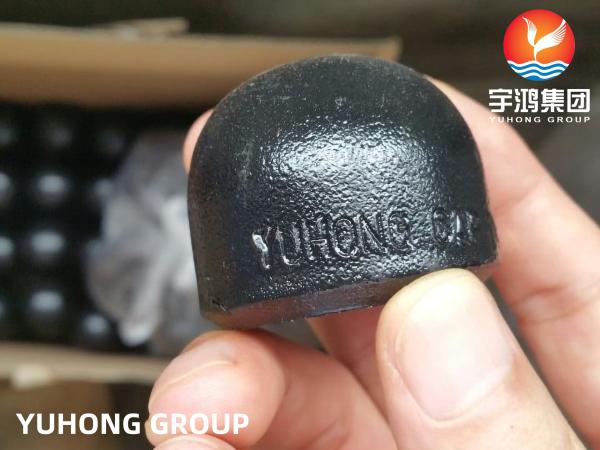

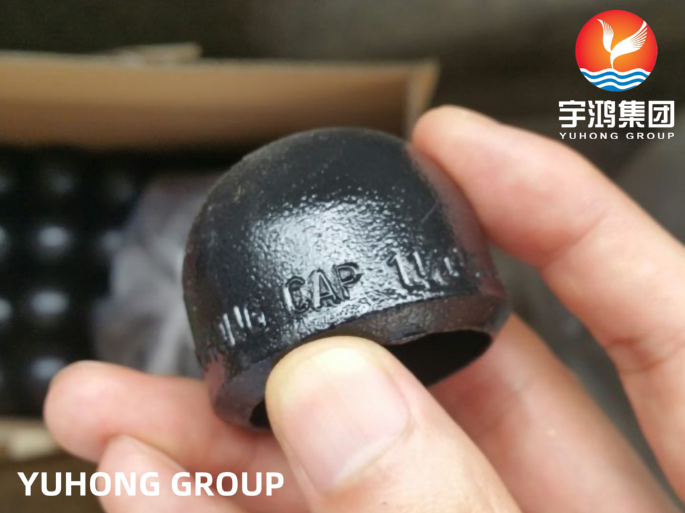

ASTM A234 WPB Butt Weld Carbon Steel Pipe Fittings Black Painting End Cap
ASTM A234 WPB Carbon Steel Buttweld fittings are widely used in many applications, like chemical industry, petrochemical industry, oil and gas plant, shipbuilding equipments and so on. We have manufactured steel fittings for more than 30 years and our fittings have been sold to more than 80 countries up to now.
Products information:
Size : 1/8"NB To 48"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Cap, Elbow, Equal Tee, Reducing Tee, Eccentric Reducer, Concentric Reducer
Materials
Stainless Steel:
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel:
ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70.
Low Temperature Carbon Steel:
ASTM A420 WPL3 / A420 WPL6
Alloy Steel:
ASTM A234 / ASME SA234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel:
ASTM A815 UNS NO S 31803 , S 32205.
Nickel Alloy:
Standard
Value Added Services
-
Hot Dip Galvanizing
-
Epoxy Coating
Test Certificate
Mill Test Certificate as per EN 10204 / 3.1B
Carbon Steel Pipe Fitting - Cap
Standard
Nominal
Pipe Size | Outside
Diameter | Inside
Diameter | Wall
Thickness | Length | Pipe
Schedule | Weight
Pounds |
| 1/2 | 0.84 | 0.622 | 0.109 | 1 | 40 | 0.08 |
| 3/4 | 1.05 | 0.824 | 0.113 | 1.25 | 40 | 0.14 |
| 1 | 1.32 | 1.049 | 0.133 | 1.5 | 40 | 0.21 |
| 1 1/4 | 1.66 | 1.38 | 0.14 | 1.5 | 40 | 0.33 |
| 1 1/2 | 1.9 | 1.61 | 0.145 | 1.5 | 40 | 0.54 |
| 2 | 2.38 | 2.067 | 0.154 | 1.5 | 40 | 0.8 |
| 2 1/2 | 2.88 | 2.469 | 0.203 | 1.5 | 40 | 1 |
| 3 | 3.5 | 3.068 | 0.216 | 2 | 40 | 1.7 |
| 3 1/2 | 4 | 3.548 | 0.226 | 2.5 | 40 | 2.3 |
| 4 | 4.5 | 4.026 | 0.237 | 2.5 | 40 | 2.8 |
| 5 | 5.56 | 5.047 | 0.258 | 3 | 40 | 4.6 |
| 6 | 6.62 | 6.065 | 0.28 | 3.5 | 40 | 6.9 |
| 8 | 8.62 | 7.981 | 0.322 | 4 | 40 | 11.8 |
| 10 | 10.75 | 10.02 | 0.365 | 5 | 40 | 20.8 |
| 12 | 12.75 | 12 | 0.375 | 6 | * | 30.3 |
| 14 | 14 | 13.25 | 0.375 | 6.5 | 30 | 36.5 |
| 16 | 16 | 15.25 | 0.375 | 7 | 30 | 43.5 |
| 18 | 18 | 17.25 | 0.375 | 8 | * | 57 |
| 20 | 20 | 19.25 | 0.375 | 9 | 20 | 75.7 |
| 24 | 24 | 23.25 | 0.375 | 10.5 | 20 | 101 |
| 30 | 30 | 29.24 | 0.38 | 10.5 | * | 137 |
| 36 | 36 | 35.24 | 0.38 | 10.5 | * | 175 |
| 42 | 42 | 41.24 | 0.38 | 12 | * | 229 |
| 48 | 48 | 47.24 | 0.38 | 13.5 | * | 350 |
Extra Strong
| Nominal
Pipe Size | Outside
Diameter | Inside
Diameter | Wall
Thickness | Length | Pipe
Schedule | Weight
Pounds |
| 1/2 | 0.84 | 0.546 | 0.147 | 1 | 80 | 0.1 |
| 3/4 | 1.05 | 0.742 | 0.154 | 1.25 | 80 | 0.16 |
| 1 | 1.315 | 0.957 | 0.179 | 1.5 | 80 | 0.28 |
| 1 1/4 | 1.66 | 1.278 | 0.191 | 1.5 | 80 | 0.48 |
| 1 1/2 | 1.9 | 1.5 | 0.2 | 1.5 | 80 | 0.67 |
| 2 | 2.375 | 1.939 | 0.218 | 1.5 | 80 | 0.92 |
| 2 1/2 | 2.875 | 2.323 | 0.276 | 1.5 | 80 | 1.3 |
| 3 | 3.5 | 2.9 | 0.3 | 2 | 80 | 2.1 |
| 3 1/2 | 4 | 3.364 | 0.318 | 2.5 | 80 | 3 |
| 4 | 4.5 | 3.826 | 0.337 | 2.5 | 80 | 3.5 |
| 5 | 5.563 | 4.813 | 0.375 | 3 | 80 | 5.8 |
| 6 | 6.625 | 5.761 | 0.432 | 3.5 | 80 | 9.3 |
| 8 | 8.625 | 7.625 | 0.5 | 4 | 80 | 16 |
| 10 | 10.75 | 9.75 | 0.5 | 5 | 60 | 26 |
| 12 | 12.75 | 11.75 | 0.5 | 6 | * | 38 |
| 14 | 14 | 13 | 0.5 | 6.5 | * | 47 |
| 16 | 16 | 15 | 0.5 | 7 | 40 | 57 |
| 18 | 18 | 17 | 0.5 | 8 | * | 78 |
| 20 | 20 | 19 | 0.5 | 9 | 30 | 100 |
| 24 | 24 | 23 | 0.5 | 10.5 | * | 145 |
| 30 | 30 | 29 | 0.5 | 10.5 | 20 | 634 |
| 36 | 36 | 35 | 0.5 | 10.5 | 20 | 913 |
| 42 | 42 | 41 | 0.5 | 12 | * | 1,300 |
| 48 | 48 | 47 | 0.5 | 13.5 | * | 1,675 |
| |
