ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B16.5

Name: ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B165
Brand: YUHONG
Price: 1 USD

Quality ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B16.5 wholesale

Brand Name : YUHONG

Model Number : ASTM B151 C70600

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to Client Requirements

Delivery Time : 15-50 Days

Packaging Details : According to Client Requirements/ Ply-wooden Case/ Pallet

Standard : ASTM B151 / ASME SB151

Material Grade : UNS C70600

Type : Weld Neck Flange

Facing : RF, FF, RTJ, ......

Sizes : 1/8" - 48"

Class : 150LBS - 3000LBS

Technics : Forging

Applications : Construction, Gas and Oil Plants, Air, Steam, Petroleum Gas Water

Contact Now

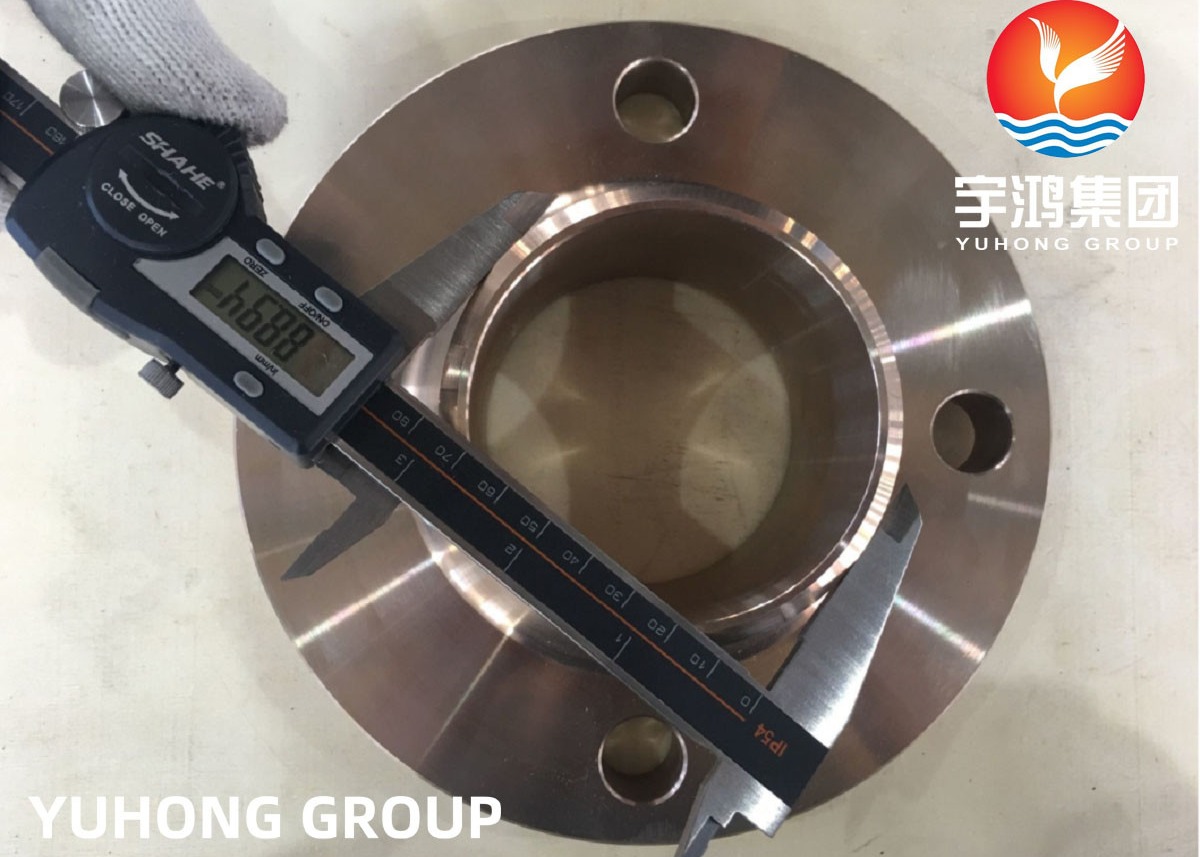

ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B16.5

ASTM B151 UNS C70600 Copper Nickel Alloy Flange is a blend of 90% and 10% copper-nickel composition. Cu-Ni 90/10 weld neck flanges have excellent corrosion resistance, because of the presence of nickel and other strengthening components like iron and manganese which improve their capability of withstanding corrosive elements. Copper Nickel Alloy Weld Neck Flanges are used a lot in seawater piping systems, crankshafts, tubes for light-duty condensers, sea water pipe-work desalination units and in offshore platforms.

ASTM B151 UNS C70600 Copper Nickel Alloy Weld Neck Flanges have good corrosion resistance properties, high strength, and durability suitable for use in high-temperature and high-pressure environments. Copper Nickel Alloy Pipes Flanges are extremely ideal for industries in which prevention from various reducing agents is required.

Equivalent Grades:

GRADE	UNS	WNR.	EN	AFNOR
Cu-Ni 90/10	C70600	2.0872	NiCr20CuMo	Z2NCUD31-20AZ

Specification:

Specification	ASTM B151 UNS C70600
Type Of Flange	Weld Neck, Blind, Slip-On, Socket-Weld, Lap Joint, Threaded
Size	1/2" To 48"
Available Type	Plate / Forged/ Threaded
Standards	ANSI/ASME B16.5, API7S-15, IS 2062, ISO70051, API, API7S-43, ASME B16.48, AWWA C207, B16.47 Series A & B, API605, BS4504, EN1092, UNI, ASME B16.36, DIN, BS1560-3.1, EN-1092, ISO, MSS S44
Pressure Rating Class	Class 150 To Class 2500
Face Type	Ring Type Joint, Flat Face, Lap-Joint Face, Raised Face, Large Tongue & Groove And Small Tongue Groove, Large Male-Female And Small Male-Female
Technique	Heat Treated/ Machined/ Forged

Chemical Composition:

Cu	Mn	Pb	Ni	Fe	Zn
88.6 min	1.0 max	0.05 max	9-11	1.8 max	1 max

Mechanical Properties:

Density	Elongation	Yield Strength (0.2%Offset)	Tensile Strength	Melting Point
0.323 lb/in3	30 %	20000 psi	50000 psi	2260 F

Applications:

Heat Exchangers & Boilers

Oil & Gas Pipeline

Petrochemical Industry

Pharmaceutical Industry

Food Industry

Water Treatment

Onshore & Offshore Platform

Shipbuilding

Electric Plant

Sugar Industry

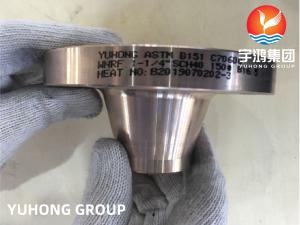

ASTM B151 C70600 Copper Nickel Alloy Weld Neck Raised Face Flange ASME B16.5
