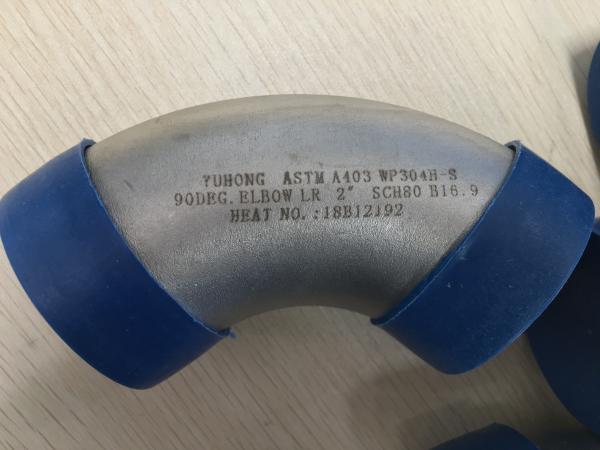

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows

Name: ASTM A403 WP304S 90Deg LR Butt Weld Stainless Steel Elbows
Brand: YUHONG
Price: 1 USD

Quality ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows wholesale

Brand Name : YUHONG

Model Number : ASTM A403 WP304-S

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 5 Pieces

Price : Discussion

Payment Terms : T/T, L/C at sight

Supply Ability : According To Clients' Request

Delivery Time : 5 - 60 work days

Packaging Details : Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap

Standard : ASTM A403, ASME SA403

Material Grade : WP304-S

Technics : Forged, Casting, Pushing, Butt Weld, Welding

Connection : Welding, Female, Male

NDT : ET,UT,PT,HT

Contact Now

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows

The ASTM A403 specification covers Austenitic Stainless Steel Pipe Fittings used in engineering industry, energy conversion plants, etc. These A403 fittings are manufactured in seamless and welded type.

SS304 is the most basic stainless steel with higher chromium and low carbon content. The low carbon content restricts carbide precipitation during welding as well as minimizes its susceptibility to intergranular corrosion. SS304L is an extra low-carbon variation of SS304 with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. Both SS304 and SS304L have excellent resistance to a wide range of atmospheric, chemical and petrochemical, and food industry corrosions. Generally, they are used in applications with the maximum temperature of 1650°F [900°C] showing good oxidation resistance.

Equivalent Grades:

Type	UNS	JIS	EN/DIN	EN/BS	EN/NF	ISO	GB	GOST
304	S30400	SUS304	X5CrNi18-10	304S31	Z7CN18.09	11	0Cr18Ni9	08KH18H10

Chemical Composition:

Steel Grade	Chemical Composition
	C (Max)	Si (Max)	Mn (Max)	P (Max)	S (Max)	Ni	Cr	N

304	0.08	0.75	2	0.045	0.03	8–10.5	18–20	0.1

Mechanical Properties:

Grades	Tensile Strength ksi(Mpa), min.	Yield Strength, ksi(Mpa)	Elongation, %	Hardness, Rockwell
SS304	85 (586)	35 (241)	55	B80

Physical Properties:

Density	Melting Range	Specific Heat	Magnetic Permeability	Electric Resistivity
g/cm3	°F	KJ/KG*K	Oersteds	Microhm-cm
8.03	2550- 2650	0.5	≤1.02	72

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows

Product Tags:

carbon steel fittings

forged steel fittings

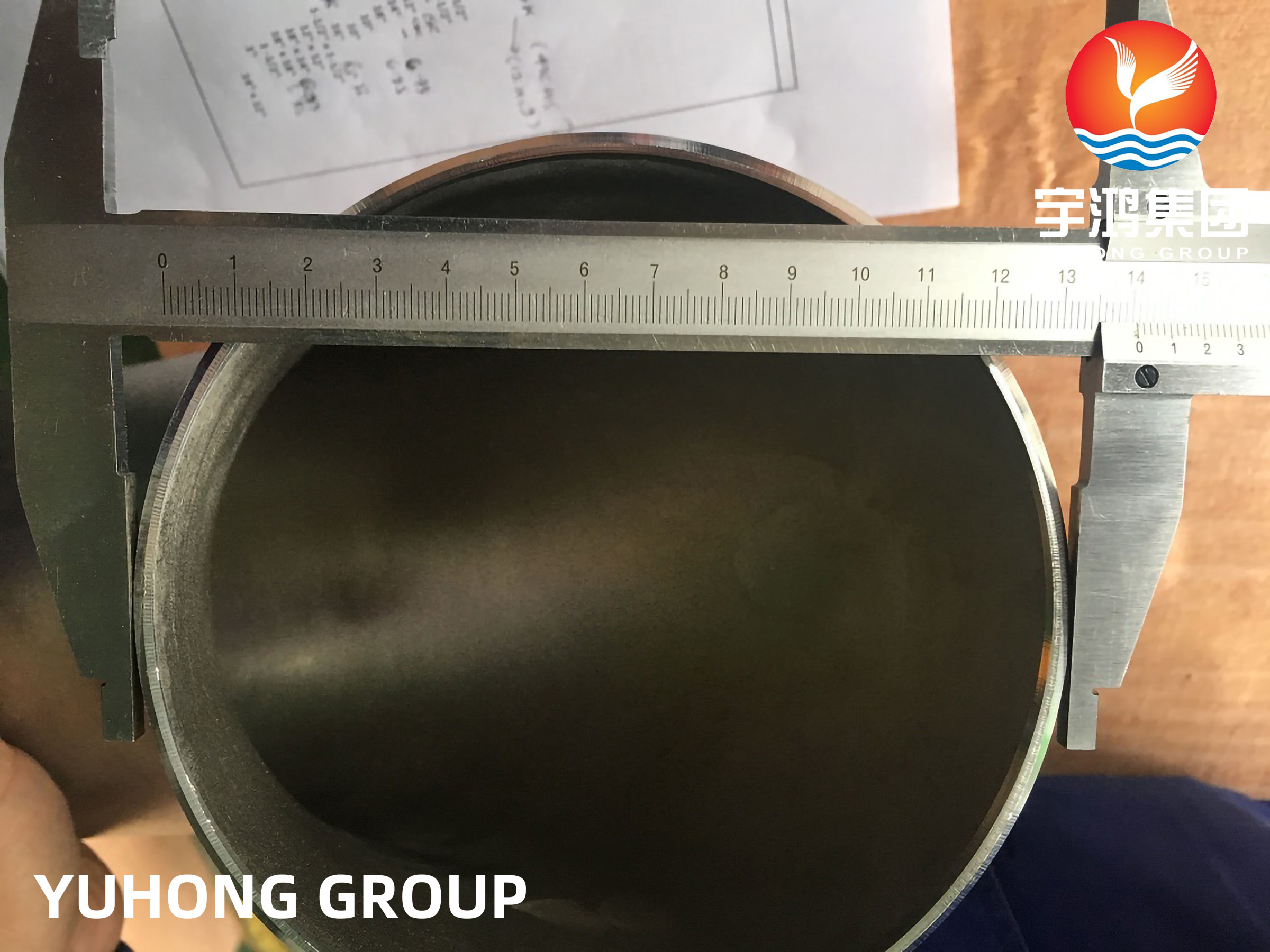

ASTM A403 WP304-S 90Deg LR Butt Weld Stainless Steel Elbows Images
